3D1-SZ High Pressure Plunger Pumps

Product Details

Brief Description

The 3D1-SZ three-plunger high-pressure pump is designed and manufactured by Autrol Technology for use in industrial settings. It can operate continuously for 24 hours.

Applications

Industrial cleaning and high-pressure water jetting, water treatment and desalination, oil and gas and energy, chemical and pharmaceuticals, mining and metallurgy, advanced manufacturing and pressure testing, agriculture and environmental protection

Markets

Equipment cleaning, pipeline cleaning, paint and rust removal, phosphating removal, vehicle/container washing, reverse osmosis boosting, seawater desalination, industrial pure water production, membrane system backwashing, oilfield injection of water, polymer, alcohol, well cleaning, pressure testing, fracturing assistance, wellhead boosting, high-pressure chemical dosing, metered feeding, solvent transfer, reactor feeding, sterile transfer, tailings/mineral slurry conveying, mine drainage

Full Description

The 3D1-SZ series high-pressure plunger pump is designed for heavy-duty industrial applications, capable of continuous 24-hour operation. It features an integrated gearbox and self-lubricating design, suitable for use with water and liquid carbon dioxide. This pump is customized for special industries requiring low-temperature high-pressure pumps, high-temperature pumps, chemical high-pressure pumps, and other specialized applications.

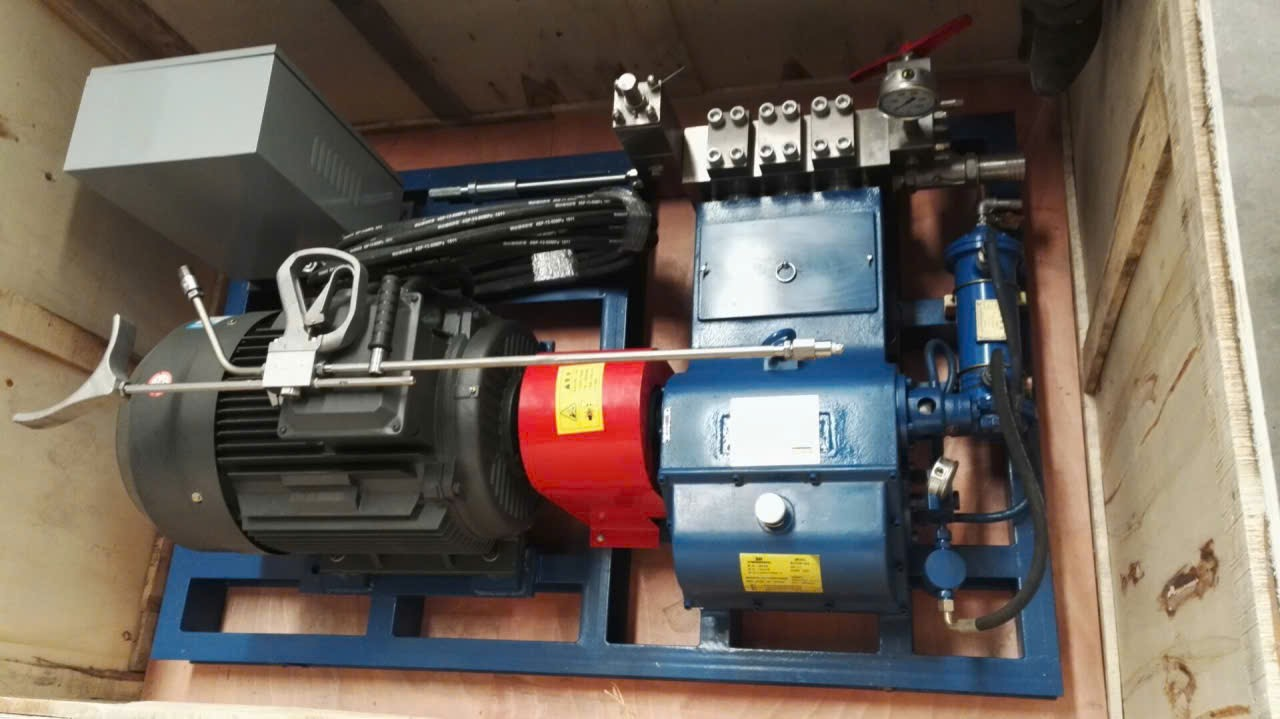

Standard configuration includes: base frame, motor, flexible coupling, control panel, 15-meter high-pressure hose, handheld overflow high-pressure water gun, Y-type inlet pre-filter, safety valve, relief valve, and shock-resistant pressure gauge.

Pump specifications: Motor speed 1450 rpm, pump speed 400 min⁻¹, gear ratio i=3.65, plunger stroke 95 mm.

How to select the right model: High-pressure plunger pumps are not only used for high-pressure water cleaning but can also be selected based on specific site requirements. If you are unsure about which model to choose, please contact Aotulong Technology's technical support team. Share your requirements with them, and their professional engineers will recommend the most suitable high-pressure pump for your needs.

3D1-SZ 22/25-11 KW 3 Plunger High Pressure Pumps
Power KW	M3/h Flow rate L/min		Pressure Mpa	Plunger mm
11	1.5	25	22	22
	1.92	32	17	25
	2.4	40	14	28
	2.88	48	12	30
	3.3	55	10	32
	3.9	65	9	35
	5.1	85	7	40
	6.3	105	5.5	45

3D1-SZ 15KW 3 Plunger High Pressure Pumps
Power KW	M3/h Flow rate L/min		Pressure Mpa	Plunger mm
15	1.92	32	25	22
	2.4	40	18	25
	3	50	15	28
	3.6	60	13	30
	3.9	65	11	32
	4.8	80	9.5	35
	6.3	105	7.5	40
	8.1	135	6	45

3D1-SZ 18.5 KW High Pressure Plunger Pumps
Power KW	M3/h Flow rate L/min		Pressure Mpa	Plunger mm
18.5	1.92	32		22
	2.4	40	22	25
	3	50	18	28
	3.6	60	16	30
	3.9	65	14	32
	4.8	80	12	35
	6.3	105	9	40
	8.1	135	7	45

Dimensions	Approx. 550kg (incl. packaging)
Net/Gross Weight	Varies by specification
Material	Premium Industrial Material

Sales & After-Sales Policy

Shipping: Dispatched within ___ hours (remote areas excluded).
Returns: 7-day no-reason return (non-custom items).
Warranty: 1-year free warranty service.
