Full Description

3D Rotary Tank Cleaning Machine for Mechanical Cleaning & COW nozzles

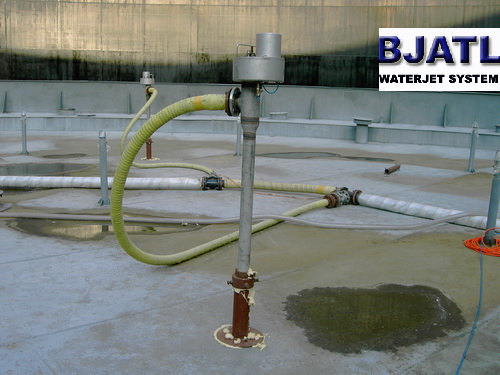

This 3D rotary cleaning machine is designed for the mechanical cleaning of crude oil tanks, refined oil tanks, tanker holds, and other large-scale storage tanks.

1. Working Mechanism:
Powered by compressed air, the machine features a dual-rotation system: the main rod rotates 360°, while the secondary rotation joint operates within a 0-140° range. The rotation speed varies depending on the compressed air pressure. All models feature a DN65 ANSI flange connection for the cleaning medium inlet.

2. Interface Specifications:

• Compressed Air Inlet: Ø10
• Cleaning Liquid Inlet: DN65 Flange
• Nozzle Outlets: Available in Ø30, Ø15, Ø8, and other sizes

3. Models & Dimensions:

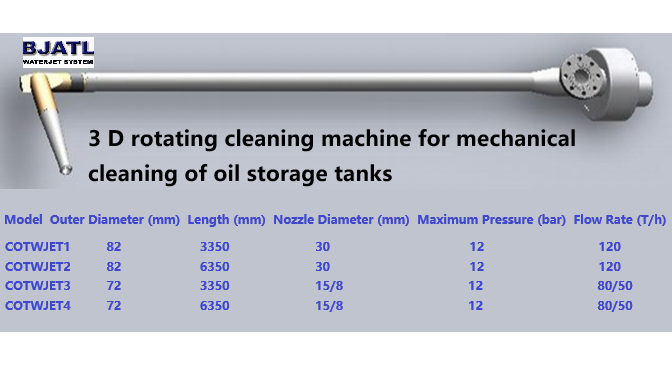

Please refer to the image for detailed model specifications and dimensions.

4. Key Features:

• Easy installation
• Pneumatic drive

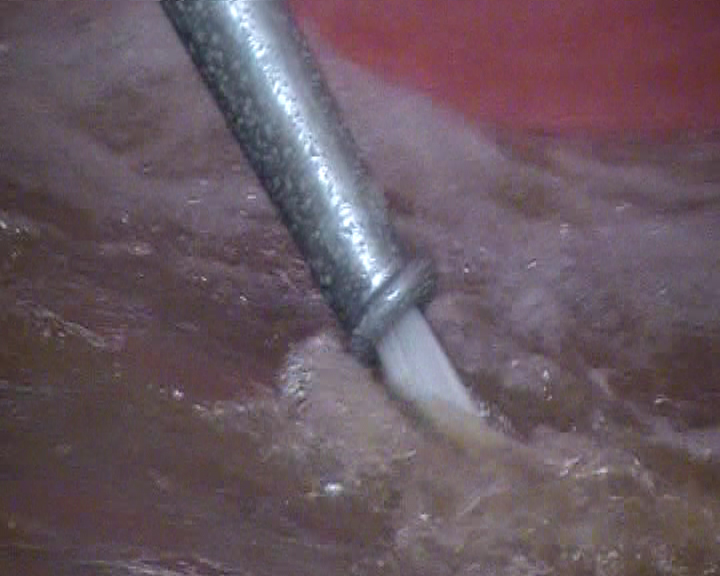

• Optional video monitoring system
• Safe and reliable operation

5. Delivery & After-Sales:

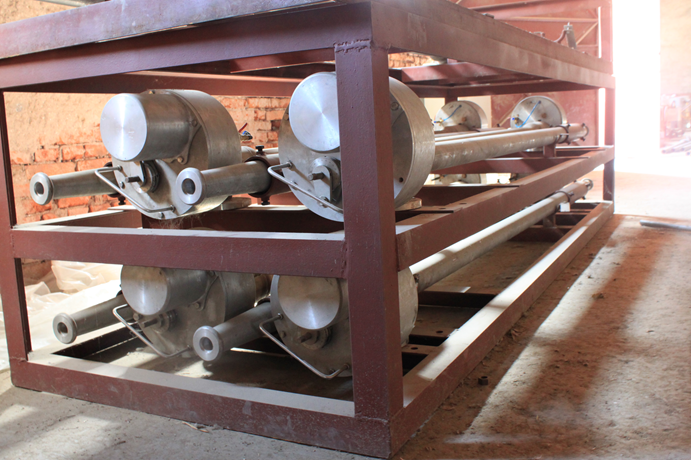

Each unit comes with an installation bracket, a protective cover for the rotation joint, and a dedicated transport frame.

6. Pricing:
The listed price is the final, ready-to-buy price.
