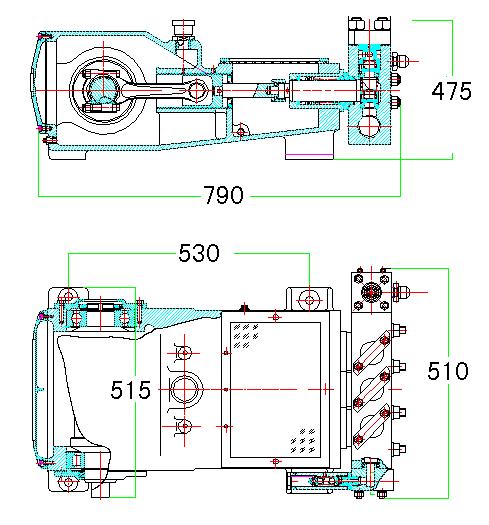

3D1-SZ 3 plunger pumps


High-pressure plunger pump for BJATL-waterjet system advanced equipment with one unit, High pressure plunger pump is designed and produced by BJATL for heavy industrial pressure and high pressure water cleaning and industrial conveying. It adopts built-in deceleration system, medium speed motor or diesel engine direct drive, small size and beautiful structure. Plunger with stainless steel, ceramic, tungsten carbide and other optional materials; The sealing is sealed with high quality material, durable wear resistance, long operating life; Key check valves and seals are processed with special alloys

Power (KW)	Pressure (bar)	Flow rate		plunger (mm)	Power (KW)	Pressure (bar)	Flow rate		plunger (mm)	Motor speed   1500 min-1	Gear ratio  I gear    3.650	Pump speed     400 min-1
		m3/h	L/min				m3/h	L/min
11	220	1.5	25	22	15		1.5	25	22
	170	1.92	32	25		220	1.92	32	25
	140	2.4	40	28		180	2.4	40	28
	120	2.88	48	30		160	2.88	48	30
	100	3.3	55	32		140	3.3	55	32
	90	3.9	65	35		120	3.9	65	35
	70	5.1	85	40		90	5.1	85	40
	55	6.3	105	45		70	6.3	105	45
15	250	1.92	32	22	18.5		1.92	32	22	Motor speed 1500 min-1	Gear ratio  I gear  2.915	Pump speed   500 min-1
	180	2.4	40	25		220	2.4	40	25
	150	3	50	28		180	3	50	28
	130	3.6	60	30		160	3.6	60	30
	110	3.9	65	32		140	3.9	65	32
	95	4.8	80	35		120	4.8	80	35
	75	6.3	105	40		90	6.3	105	40
	60	8.1	135	45		70	8.1	135	45
