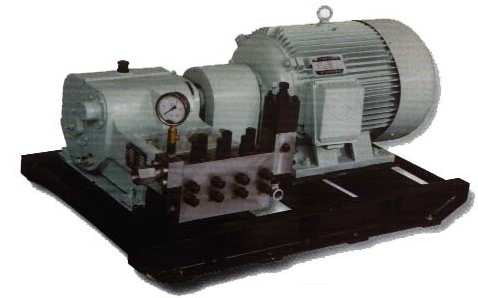

High pressure plunger pump is an important equipment for high pressure water cleaning and pressure test. The high pressure plunger pump of Altron Technology is designed for heavy industry, with built-in deceleration mechanism and forced lubrication mechanism, which can run continuously for 24 hours. It is the preferred equipment for high pressure cleaning machine room and high pressure water cleaning production line.
Conventional factory equipment standard configuration: high pressure plunger pump 1, flexible coupling 1, manual pressure regulator 1, safety valve 1, seismic pressure gauge 1, welded chassis 1;
Optional spare parts include: high pressure joint, high pressure hose, handheld high pressure spray gun, foot valve + high pressure spray gun without overflow, front water pump, water tank and motor starting cabinet, which can be fully configured according to customer requirements at one time;
High Pressure Reciprocating Triplex Plunger Pumps Splash lubrication.
For power >45 kW always with cooling.
Further pressures and capacities upon request.
The pump is designed for highly fluid liquids and is used for hydrodynamic cleaning operations.
Capacity and recommended motor rating as mentioned apply to water, the average volumetric and mechanical efficiencies are taken into consideration. The effective motor speed has taken into account as to the pump design.
|
Power
(KW)
|
Pressure
(bar)
|
Flow rate
|
plunger
(mm)
|
Power
(KW)
|
Pressure
(bar)
|
Flow rate
|
plunger
(mm)
|
Motor speed 1500 min-1
|
Gear ratio I gear 3.650
|
Pump speed 400 min-1
|
|
m3/h
|
L/min
|
m3/h
|
L/min
|
|
11
|
220
|
1.5
|
25
|
22
|
15
|
|
1.5
|
25
|
22
|
|
170
|
1.92
|
32
|
25
|
220
|
1.92
|
32
|
25
|
|
140
|
2.4
|
40
|
28
|
180
|
2.4
|
40
|
28
|
|
120
|
2.88
|
48
|
30
|
160
|
2.88
|
48
|
30
|
|
100
|
3.3
|
55
|
32
|
140
|
3.3
|
55
|
32
|
|
90
|
3.9
|
65
|
35
|
120
|
3.9
|
65
|
35
|
|
70
|
5.1
|
85
|
40
|
90
|
5.1
|
85
|
40
|
|
55
|
6.3
|
105
|
45
|
70
|
6.3
|
105
|
45
|
|
15
|
250
|
1.92
|
32
|
22
|
18.5
|
|
1.92
|
32
|
22
|
Motor speed 1500 min-1
|
Gear ratio I gear 2.915
|
Pump speed 500 min-1
|
|
180
|
2.4
|
40
|
25
|
220
|
2.4
|
40
|
25
|
|
150
|
3
|
50
|
28
|
180
|
3
|
50
|
28
|
|
130
|
3.6
|
60
|
30
|
160
|
3.6
|
60
|
30
|
|
110
|
3.9
|
65
|
32
|
140
|
3.9
|
65
|
32
|
|
95
|
4.8
|
80
|
35
|
120
|
4.8
|
80
|
35
|
|
75
|
6.3
|
105
|
40
|
90
|
6.3
|
105
|
40
|
|
60
|
8.1
|
135
|
45
|
70
|
8.1
|
135
|
45
|

Only pumps 260KG the bedrock 90KG |
