Sapphire (diamond) nozzle |
Time：2023-12-7 |
The hardness of sapphire and diamond is high, and the service life of the nozzle material is much higher, which will reduce the replacement and maintenance time in the automatic operation engineering, so the impact on the savings and product quality will be significant. Altron Technology has been engaged in the water knife industry for 20 years, and the sapphire and diamond nozzle developed for ultra-high pressure water jet is applied in many industries. According to the form and specification of the nozzles, XX (0.05, 0.1, 0.12, 0.15, 0.17, 0.20, 0.25, 0.27, 0.30, 0.35, 0.4) in the specification size, 2 series nozzles are sapphire nozzles, 7 series nozzles are diamond nozzles, other nozzles please call for consultation

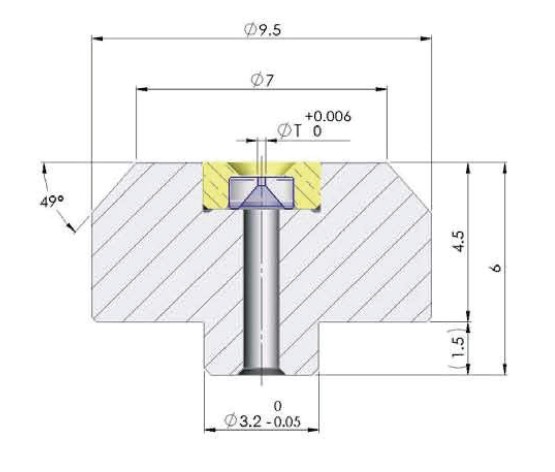

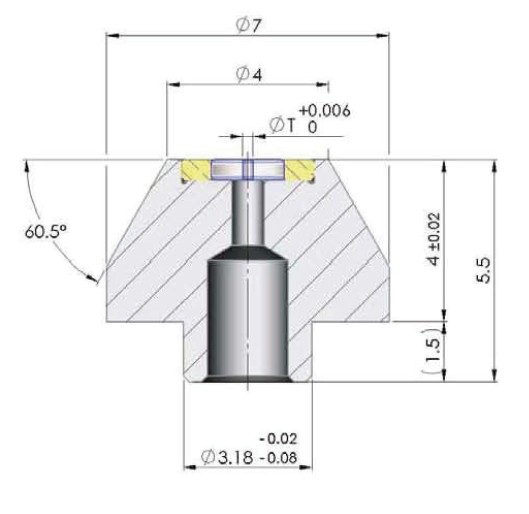

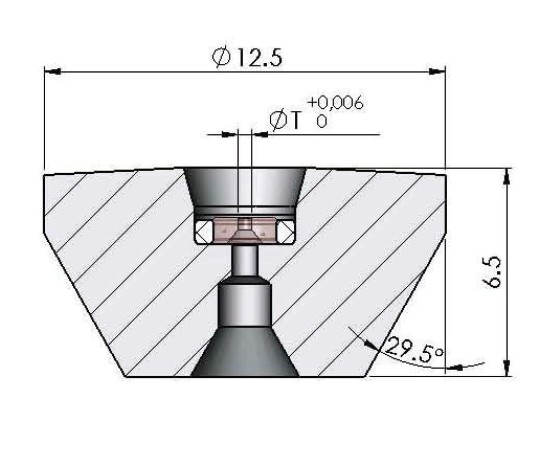

BJATL Sapphire nozzle Diamond nozzle specification sheet
| Product picture |
Product name |
Specification and size |
Order number |
remark |
 |
Sapphir nozzles
Diamond nozzles |
112-XX
117-XX |
2006112
2006127 |
|
 |
Sapphir nozzles
Diamond nozzles |
122-XX
127-XX |
2006122
2006127 |
|
 |
Sapphir nozzles
Diamond nozzles |
132-XX
137-XX |
2006132
2006137 |
|
 |
Sapphir nozzles
Diamond nozzles |
142-XX
147-XX |
2006142
2006147 |
|
 |
Sapphir nozzles
Diamond nozzles |
152-XX
157-XX |
2006152
2006157 |
|
 |
Sapphir nozzles
Diamond nozzles |
162-XX
167-XX |
2006162
2006167 |
|
| Others |
Sapphir nozzles
Diamond nozzles |
172-XX
177-XX |
2006172
2006177 |
|
|
|
|
