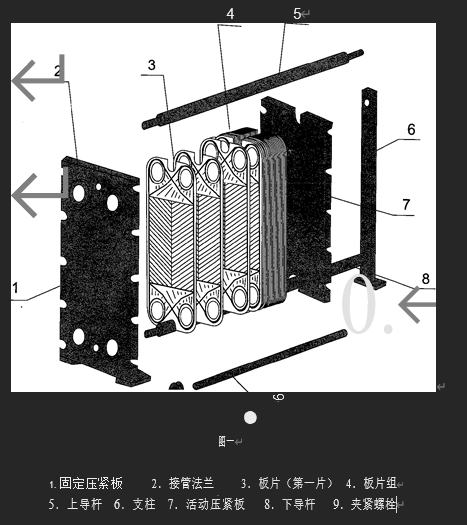

Plate Heat Exchanger
Plate heat exchanger is a frame disc heat exchanger developed by our company following the air cooler and water cooler. It increases or reduces the number of discs according to the needs of the equipment for heat transfer power. The equipment has simple structure and high heat transfer efficiency, and is a necessary spare part for many industries.
Plate Heat Exchangers Technical Data
|
Heat transmission area of single plate
|
0.05 m2 |
Remark |
|
Heat transmission coefficient(water-water)
|
2500 - 6000W/m2 · °C
|
|
|
Working temperature
|
- 30~170·c |
|
| Working pressure |
l.6MPa
|
|
| Circulation section surface of single plate |
0.000396m2
|
|
| Maximum flow rate |
12m3/h(0.5m/s) |
|
| Distance between plates |
3.0mm |
|
|
Inside nominal diameter inner thread of nipple
|
¢32mm |
|
|
Foreland installation
|
2-M8 |
|
| |
|
|
