| Storage tank sludge recovery and tank cleaning, three-dimensional rotary jet gun is the main core equipment to perform the cleaning task, full pneumatic drive, the use of explosion-proof material transmission, can achieve 0-140 ° Angle three-dimensional space arbitrary adjustment, divided into the insert diameter of 82 mm and 75 mm for different tank roof support column size design; The fluid injection 3D cleaner is generally 16-20 independent cleaners working together to complete the cleaning of the local orientation of the oil tank.
After 20 years of continuous updates, it is currently in the fourth generation, with improvements in operation, control and materials;

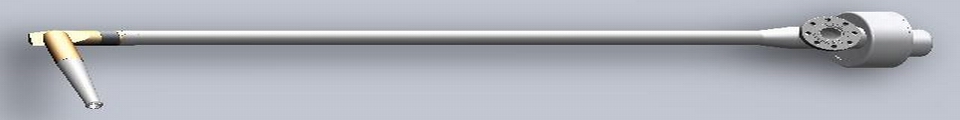

3D rotating jet gun
|
NAME
|
MODEL
|
LANGTH (METER)
|
OUTER DAIMETER
|
DAIMETER NOZZLES
|
DAIMETER INPUT
|
|
JETCOTW1
|
ATL80-325
|
3.25
|
DN82
|
DN30
|
DN65
|
|
JETCOTW2
|
ATL70-325
|
3.25
|
DN72
|
DN15
|
DN65
|
|
JETCOTW3
|
ATL80-625
|
6.25
|
DN82
|
DN30
|
DN65
|
|
JETCOTW4
|
ATL70-625
|
6.25
|
DN72
|
DN15
|
DN65
|
|
