The crude oil storage tank mechanical cleaning process is a process method to spray the cleaning medium to the surface to be cleaned at a certain temperature, pressure and flow rate using the patented product three-dimensional rotary jet cleaning machine of BJATL-waterjet system, and to remove the surface condensation and sludge, and to treat and recover it. The cleaning medium is crude oil or the same kind of media.
According to the construction requirements and site conditions, hot water and diesel oil are also used as cleaning media after crude oil cleaning, because the crude oil contains light components, namely solvent components, accelerate the disintegration of condensate and sludge in the sediment oil, after crushing sludge and cleaning oil mixed, dissolved, diffused, and finally pumped and recovered. The crude oil cleaning process requires the use of purer crude oil and usually requires a storage tank adjacent to the tank being cleaned, which usually also serves as a crude oil recovery tank. The crude oil cleaning equipment and the cleaning tank and the recovery tank are connected together with the process pipeline to form a cleaning system.
Crude oil storage tank mechanical cleaning system equipment composition

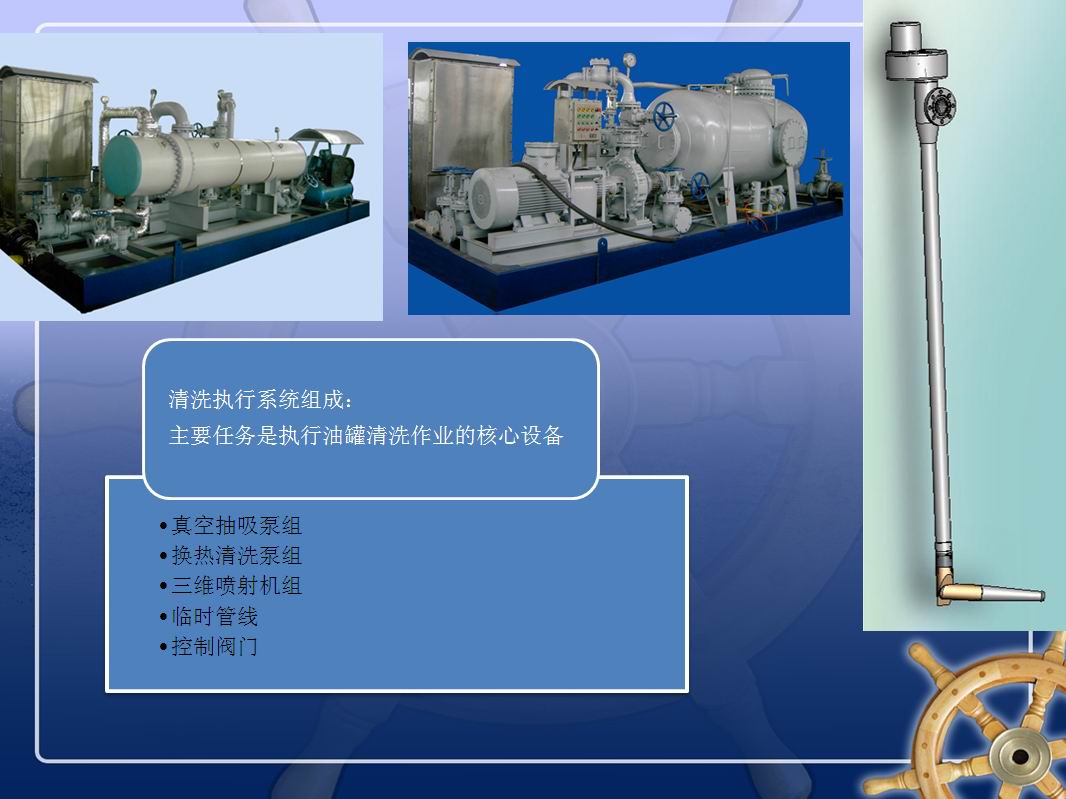

1, Crude oil storage tank bottom sludge recovery and cleaning system:
The system consists of the same oil cleaning equipment, vacuum pumping equipment and three-dimensional rotary jet gun
The system consists of the same oil cleaning equipment, vacuum pumping equipment and three-dimensional rotary jet gun

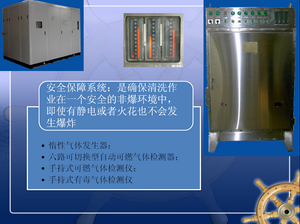

2, Crude oil storage tank mechanical cleaning construction site safety guarantee system equipment:
The equipment of the safety guarantee system mainly includes: inert gas generation equipment, hydrocarbon gas detection equipment, compressed air equipment and compressed air cooling equipment
Crude oil storage tank mechanical cleaning construction site safety guarantee system equipment

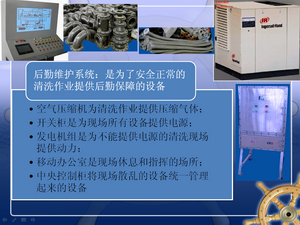

3, Crude oil storage tank mechanical cleaning construction site logistics support system equipment composition:
The equipment of the logistics support system includes: explosion-proof communication, explosion-proof lighting, temporary command post, pipes and wires linking each equipment, and equipment needed for temporary equipment maintenance
The equipment of the logistics support system includes: explosion-proof communication, explosion-proof lighting, temporary command post, pipes and wires linking each equipment, and equipment needed for temporary equipment maintenance
4,
|
